IC / RFID / Magnetic Automatic Card Dispenser Card Vending Machine CRT-591-D

    Buy cheap IC / RFID / Magnetic Automatic Card Dispenser Card Vending Machine CRT-591-D from wholesalers

    Buy cheap IC / RFID / Magnetic Automatic Card Dispenser Card Vending Machine CRT-591-D from wholesalers
    • Buy cheap IC / RFID / Magnetic Automatic Card Dispenser Card Vending Machine CRT-591-D from wholesalers

    IC / RFID / Magnetic Automatic Card Dispenser Card Vending Machine CRT-591-D

    Ask Lasest Price
    Brand Name : CREATOR
    Model Number : CRT-591-D
    Certification : EMV & PBOC
    Price : negotiation
    Payment Terms : 100% full TT advanced payment
    • Product Details
    • Company Profile

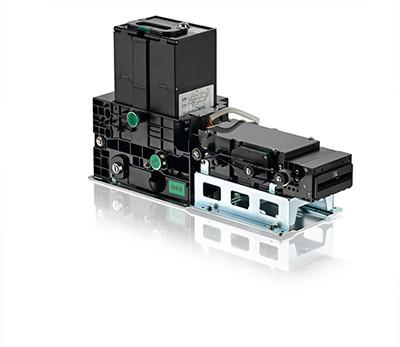

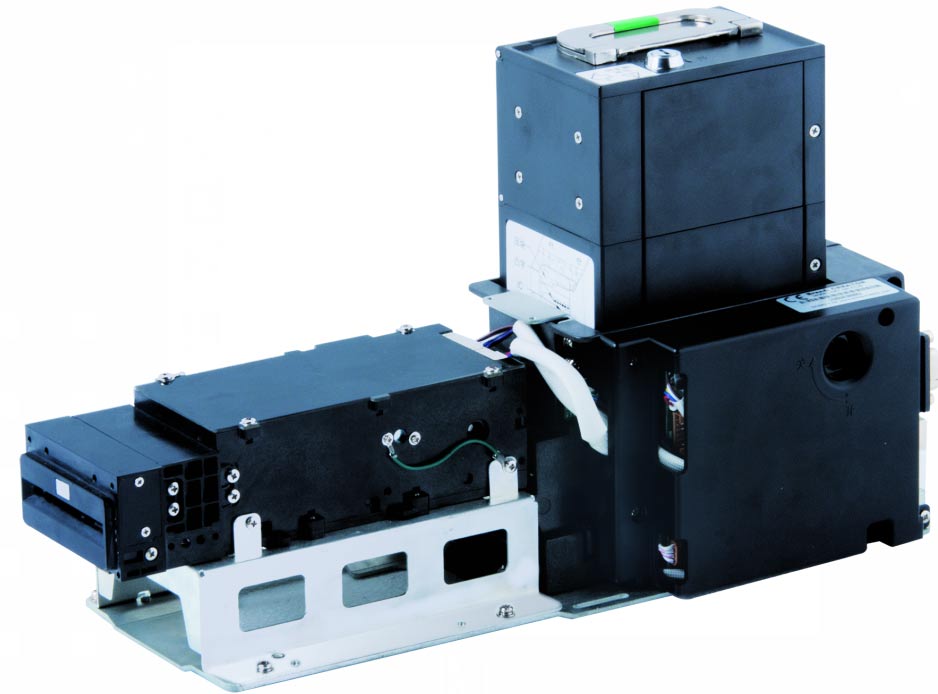

    IC / RFID / Magnetic Automatic Card Dispenser Card Vending Machine CRT-591-D

    Kiosk Card Dispenser,Card vending machine,IC/RFID/Magnetic card dispenser CRT-591-D

    CRT-591-D supports retract & issue IC/RFID/magnetic stripe card,with card empty,pre-empty,card bin status detection with alarm function.

    Kiosk card dispenser CRT-591-D product feature

    Support dispensing cards of reading & writing IC/RF cards,magnetic cards read only

    Card-Empty, Pre-card empty detection with audible alarm

    With a recycle box and support recycling cards;

    With prevention of reversing and sloping functions,the dispenser and stacker with lockable mechanism design.


    Technical Specification

    Card type

    Support type:Credit and debit card read

    TYPE of reading & writing:IC card and RFID Card,

    magnetic card read only

    Magnetic card standards:

    IS07810,7811,IS07811 - 2,IOS7811 - 4,ISO7811 - 5 ,

    ISO7811 - 6

    Card specification:IS07810ID - 1 (Magnetic standard);

    Embossed card:IS07811 - 1 ; IS07811 - 3;

    Card dimension:

    Length:85.47 ~ 85.90 mm

    Width:53.92 ~ 54.18 mm

    thickness:0.76 mm±0.1mm

    IC card standard:

    Support ISO7816-1,2,3,4

    Support PBOC2.0,PBOC3.0

    Support EMV2000

    Support PC/SC,CCID

    Dispense card

    1.With hook mechanism and it could not scratch the card when it dispensing.

    2.Available for flat card or embossed card

    3.Dispenser speed : Approx.:60mm/s

    Life time

    Transporting≥200,000 times

    magnetic stripe card re-read rate:≤1/1000

    IC contact:up to 300,000 times

    Error rate<=0.02%

    MTBF≥10,000 hours (Only electric components)


    Interface

    1.Standard: RS232

    2.USB2.0 (Optional)

    3.Bluetooth (Optional)

    4.Voltage input(4pin),with backup power interface.

    User experience

    1.flexible card supplement,easy for integrated cards

    supplement

    2.the card output obviously, easy to take.

    3.independent capture cassette design,easy to manage

    the cards

    4.clear and quick trouble shooting

    WeightAbout 1.8KG

    Card vending machine

    Card dispenser CRT-591-D product application

    Financical industry

    Self-service dispenser

    Kiosk

    Automatic card-vending machine

    Card-issuing system
